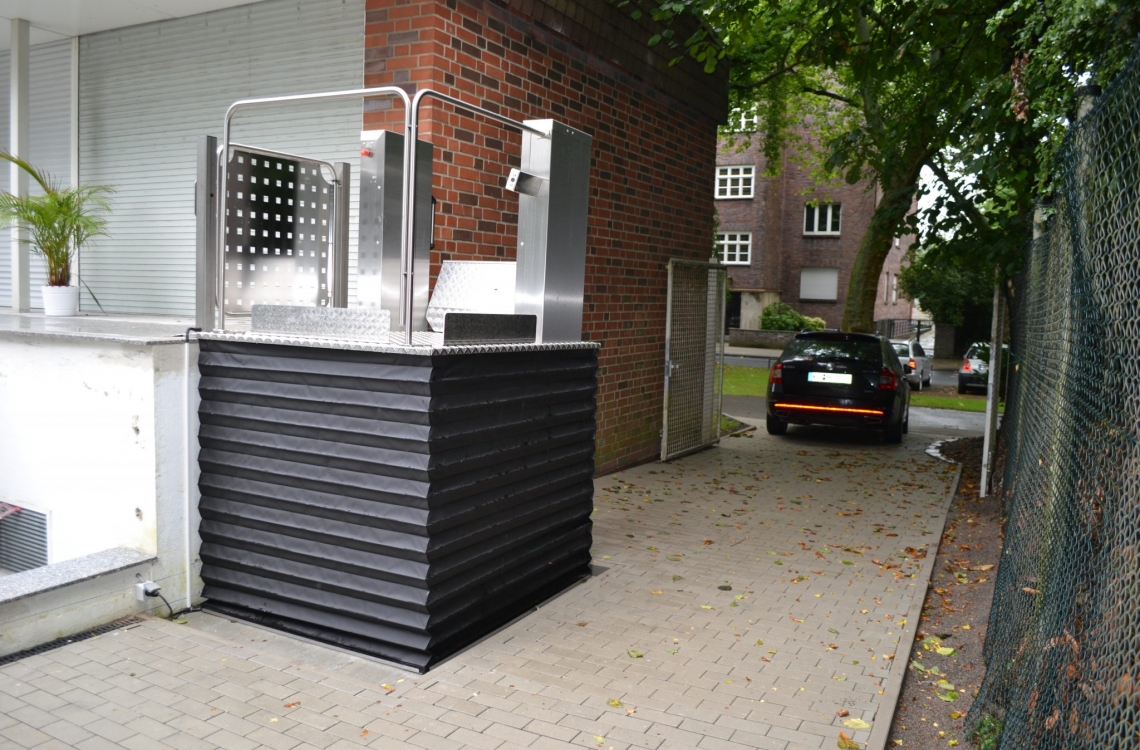

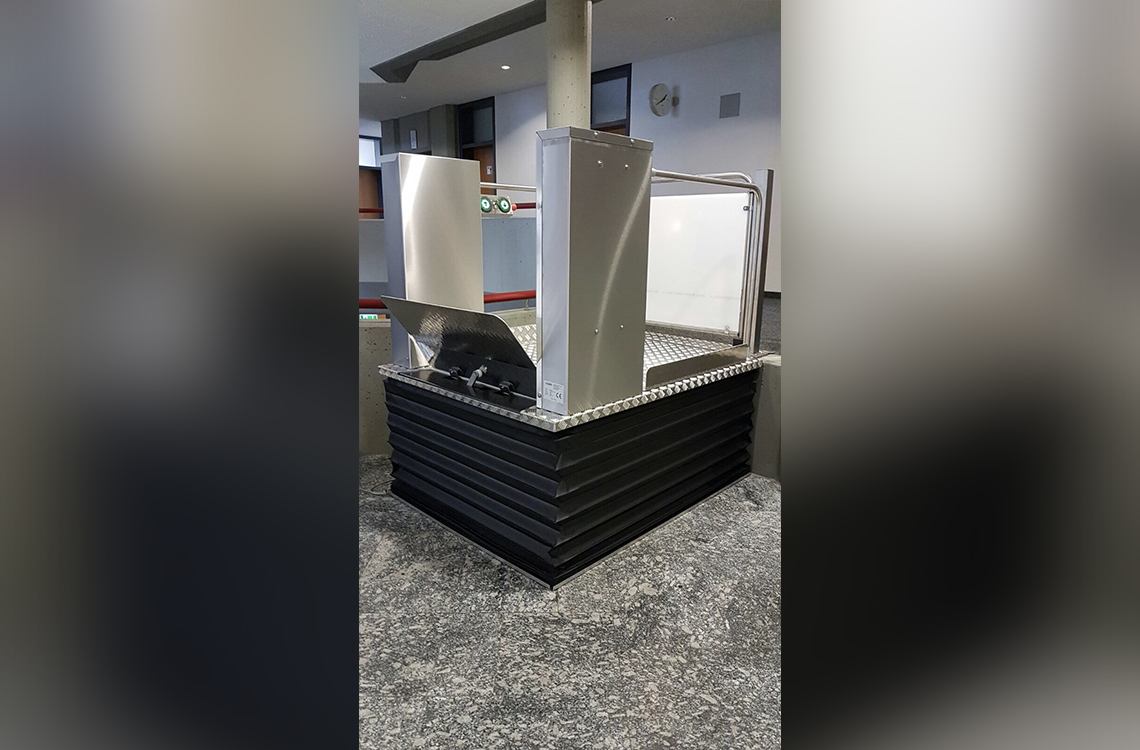

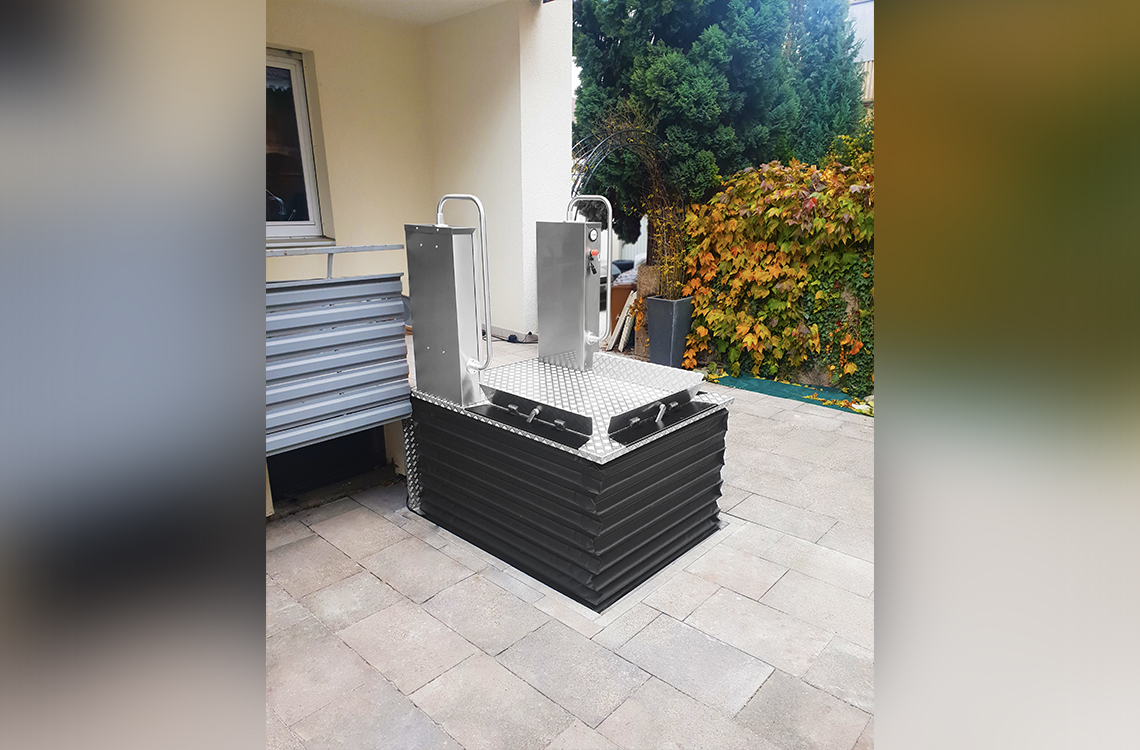

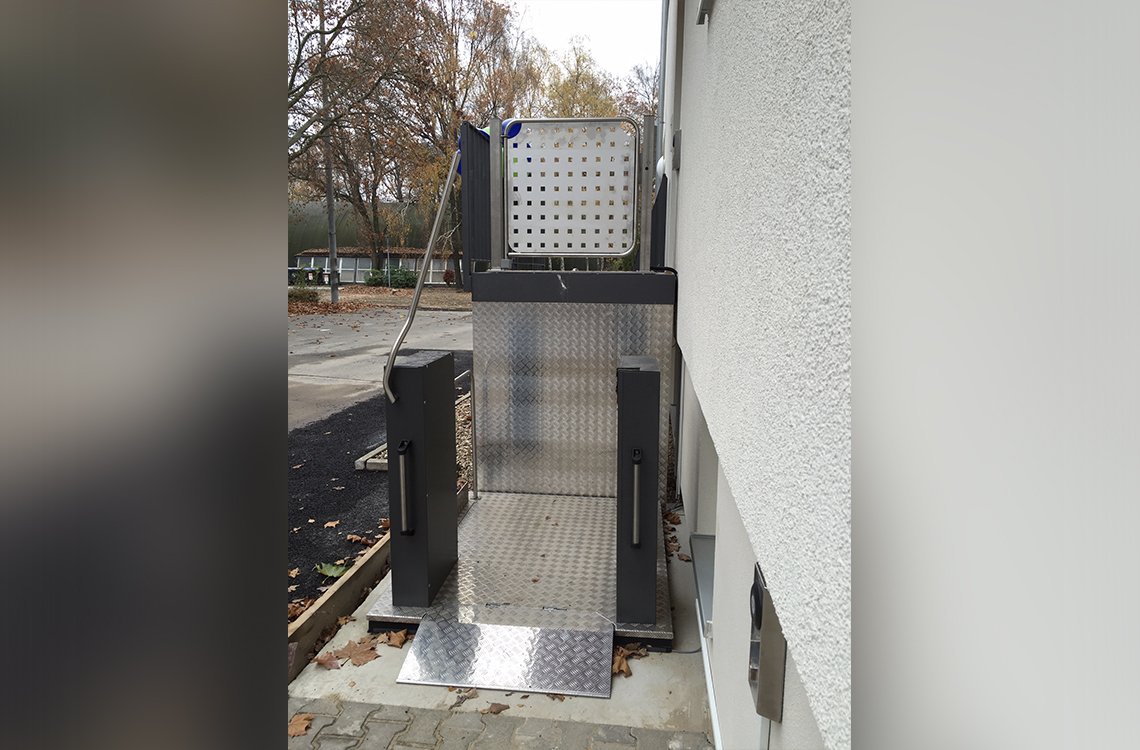

MB1100, MB1400 & MB1700The allrounder
Uncountable versions on the smallest space
The maximum lifting heights of the MB1100, MB1400 and MB1700 overcome up to

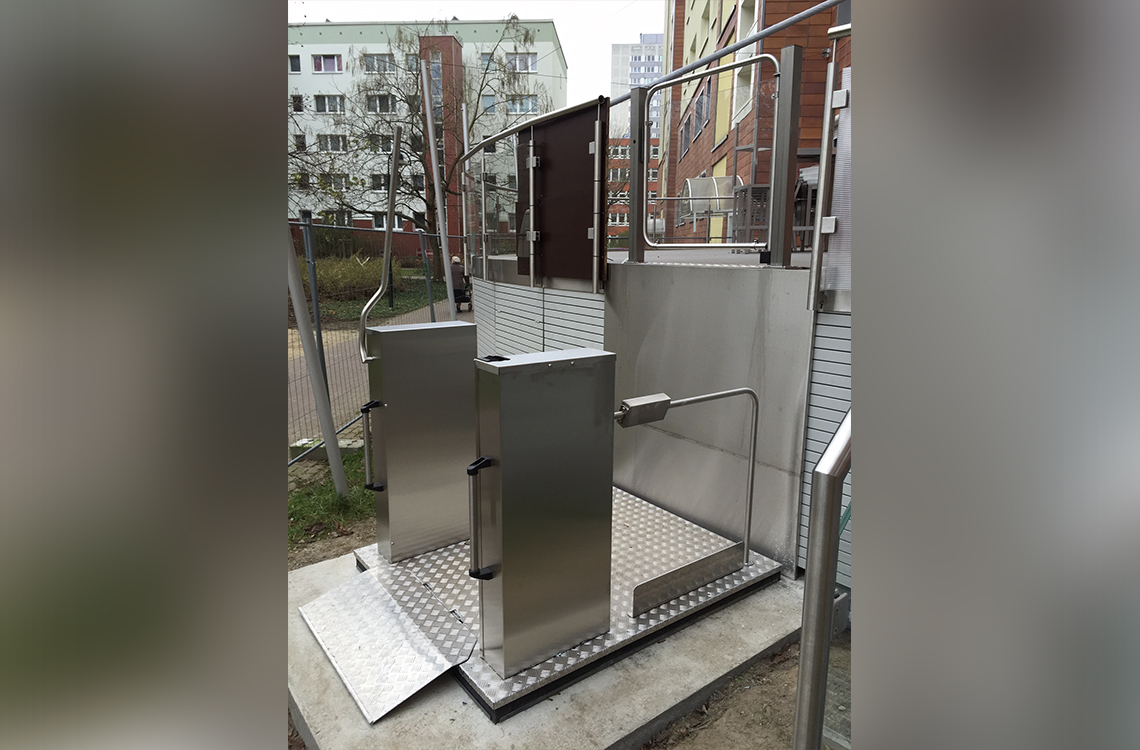

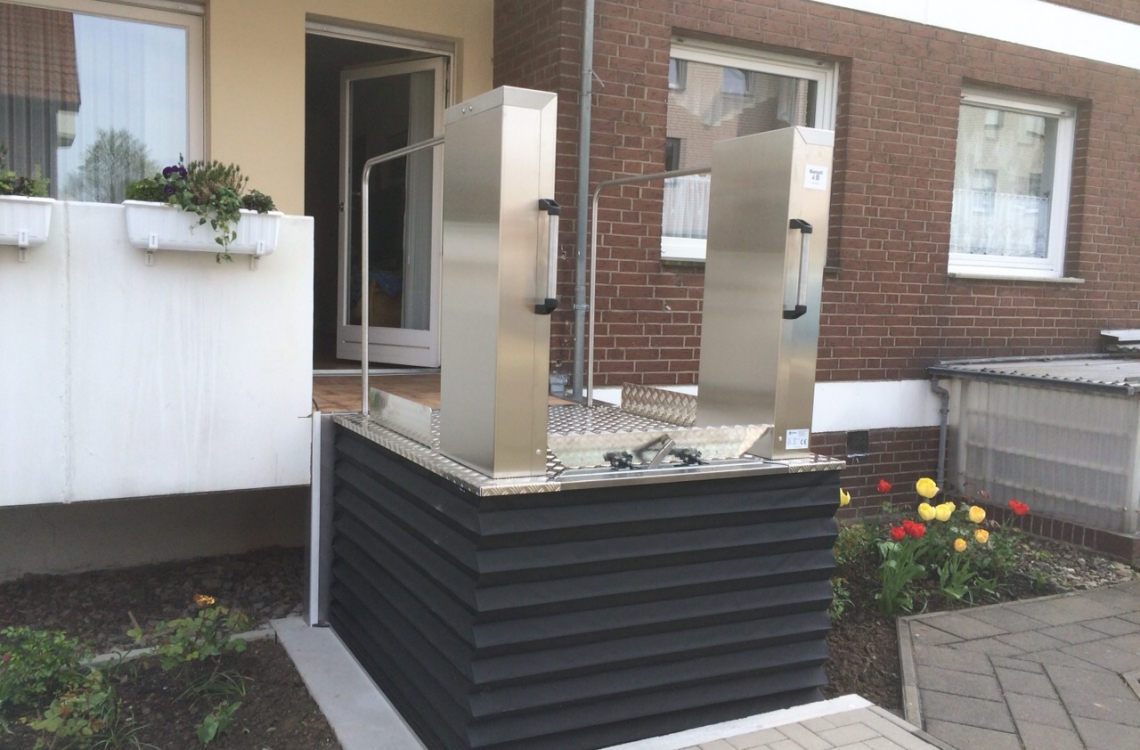

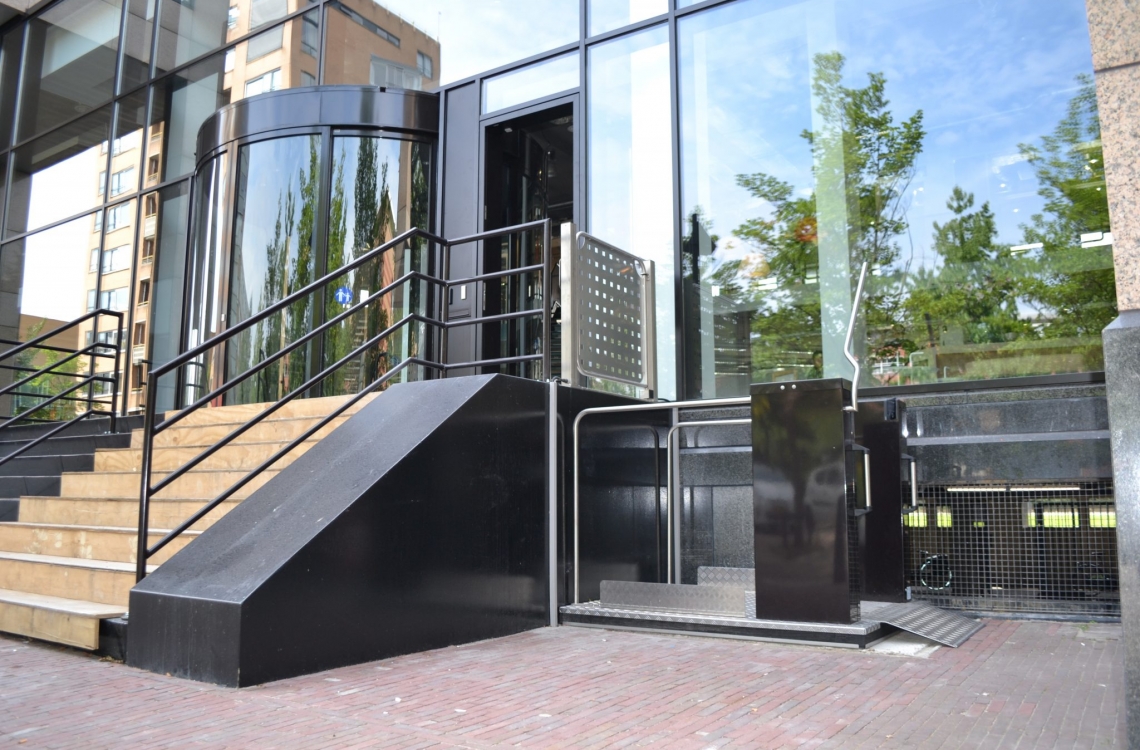

nine or more steps in or outside the house. Thanks to their flat designed systems, the three versions with different lifting heights could be placed directly on the level ground, if required also surface leveled. The high-quality stainless steel construction sustains wind and weather and is heat-, frost and rain resistant. The lift could be controlled with the hand held control, the handy radio control or alternatively comfortable with the app. The lift was deliberately designed so that standing persons could also drive comfortable. By request a door could be build on the upper station and an automatic barrier on the lower one – for even more safety.
- 1100*/1160 mm max. lifting height (*when build into pit)
- Loading capacity 300 kg
- 60 mm clearance height with ramp or ground level installation
- Speed approx. 20 mm/s
- Passage width 900 mm
- Lift width 1280 mm
- Lift length 1630 mm
- Straight or adjacent access
- Automatic ramp also protects against rolling off
- CE-conform according to machinery directive 2006/42/EG
- Waterproof sensor buttons with vandalism protection class IK08 and key lock
- Radio and Bluetooth control possible
- Required electrical connection 230V (regular plug)
- Temperatures from -25°C to +40°C
- Standard control with wired handheld control unit
- 1400*/1490 mm max. lifting height (*when build into pit)
- Loading capacity 300 kg
- 90 mm clearance height with ramp or ground level installation
- Speed approx. 20 mm/s
- Passage width 900 mm
- Lift width 1280 mm
- Lift length 1630 mm
- Straight or adjacent access
- Automatic ramp also protects against rolling off
- CE-conform according to machinery directive 2006/42/EG
- Waterproof sensor buttons with vandalism protection class IK08 and key lock
- Radio and Bluetooth control possible
- Required electrical connection 230V (regular plug)
- Temperatures from -25°C to +40°C
- Standard control with wired handheld control unit
- 1400*/1490 mm max. lifting height (*when build into pit)
- Loading capacity 300 kg
- 90 mm clearance height with ramp or ground level installation
- Speed approx. 20 mm/s
- Passage width 900 mm
- Lift width 1280 mm
- Lift length 1630 mm
- Straight or adjacent access
- Automatic ramp also protects against rolling off
- CE-conform according to machinery directive 2006/42/EG
- Waterproof sensor buttons with vandalism protection class IK08 and key lock
- Radio and Bluetooth control possible
- Required electrical connection 230V (regular plug)
- Temperatures from -25°C to +40°C
- Standard control with wired handheld control unit

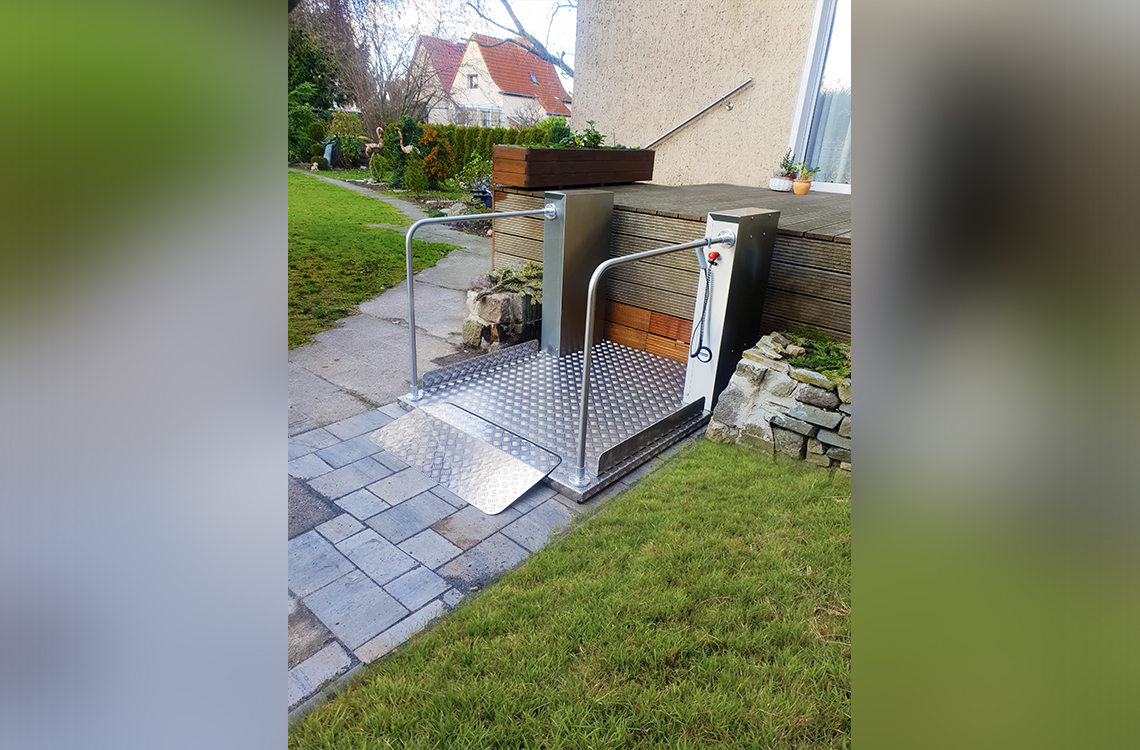

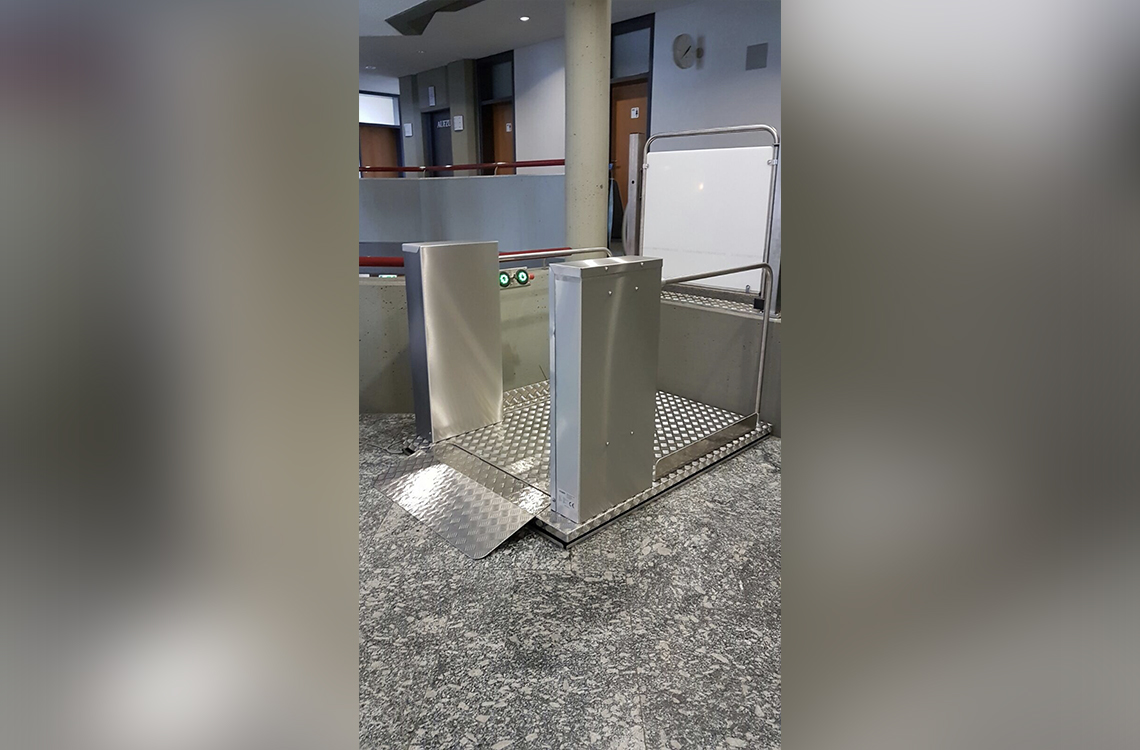

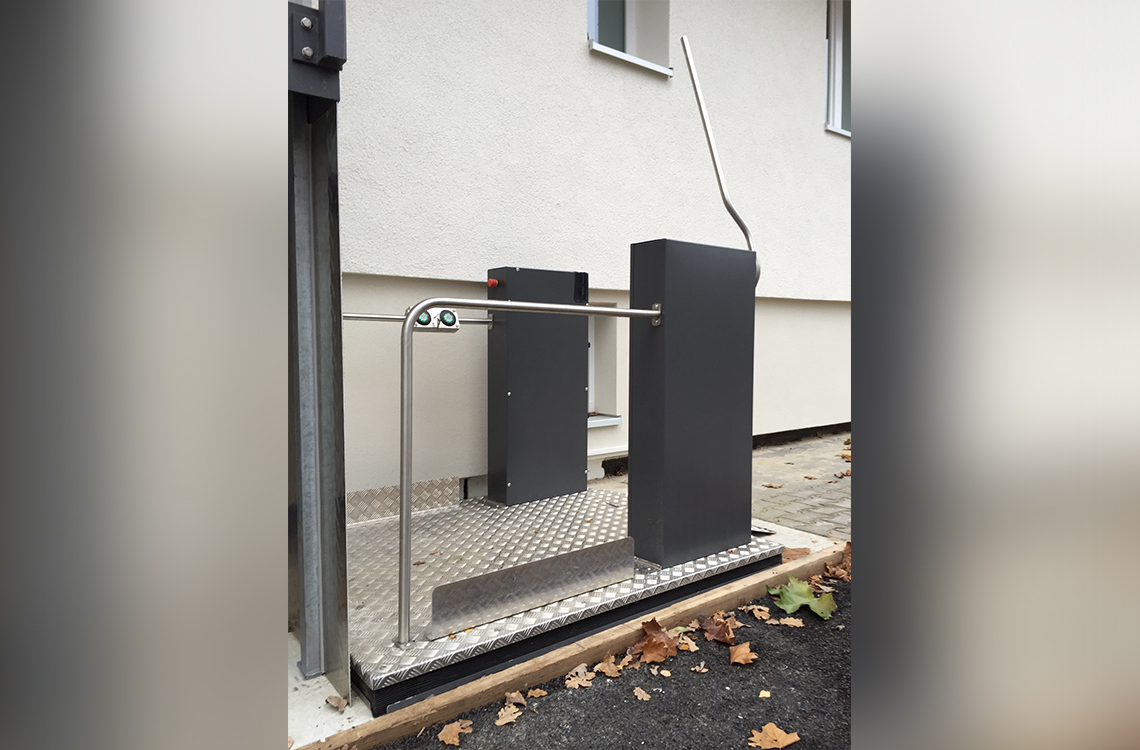

Automatic ramp
The automatic ramp has two tasks. On one hand, it helps overcoming the clearance height. On the other hand, it protects the user from rolling off during the drive. The ramp is opened and closed mechanically through a lever – no electrical connection needed.

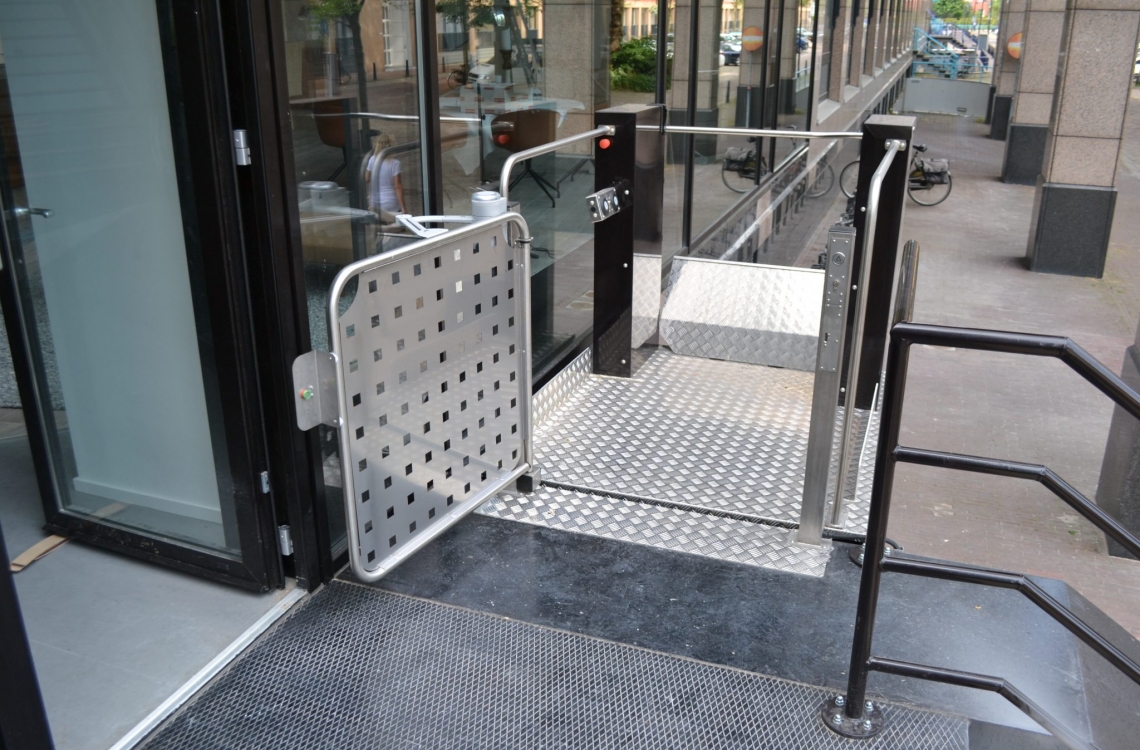

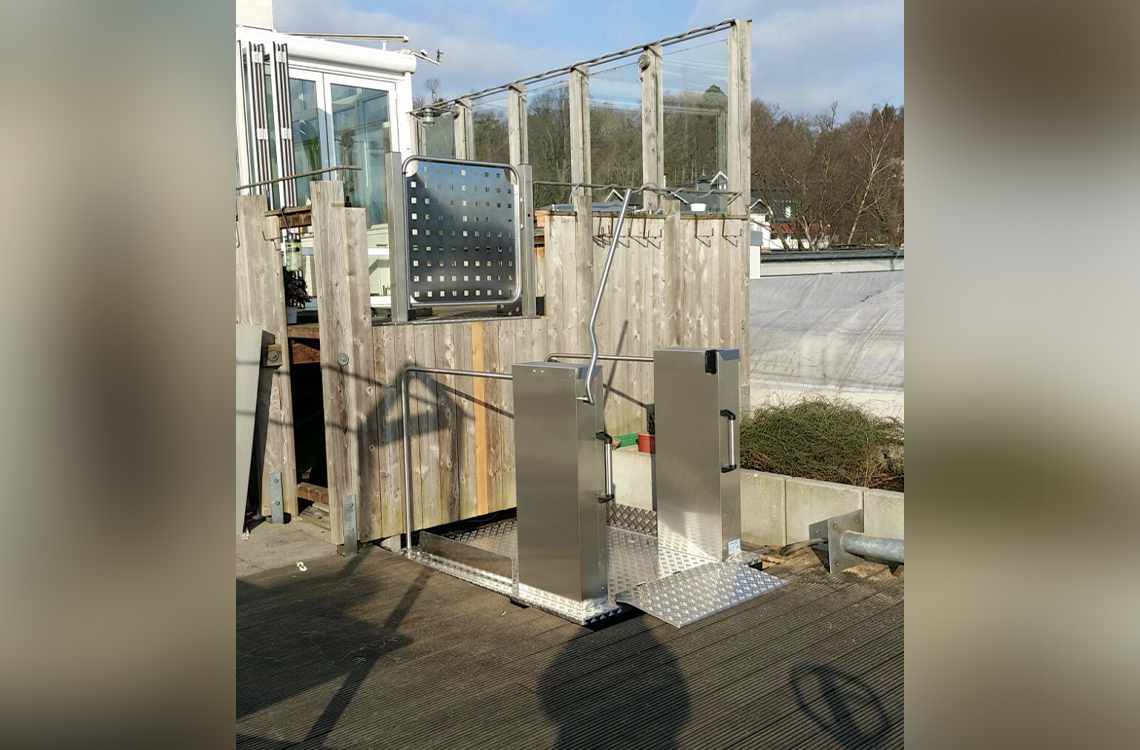

Door for the upper station
For the upper station, a stainless steel door can be ordered additionally. It secures the upper edge against falling down. This door is a reasonable addition for more security, especially in public spaces like schools, hotels and apartment building.
Sensor buttons
The optional sensor buttons are extremely robust and safe against vandalism, therefore they are perfectly suitable for the installation in public areas.
Thanks to their size and the sensor-surface, the user need nearly no force for operating them – a big plus for comfort.
Technical Data
Loading capacity 300 kg
Even heavy electrical wheelchairs can be lifted without strain
Usable platform 900 x1630 mm
Wheelchair accessible platform dimensions for enough free space
Lifting height up to 1700 mm
Without being built into a pit even up to 1790 mm
Options
Sensor Buttons
High protection against vandalism and a big plus for comfort while driving
Controllable via smartphone app
For your Android and iOS device
Adjacent or straight access
The flexible design offers an adjacent or straight access from all four sides.

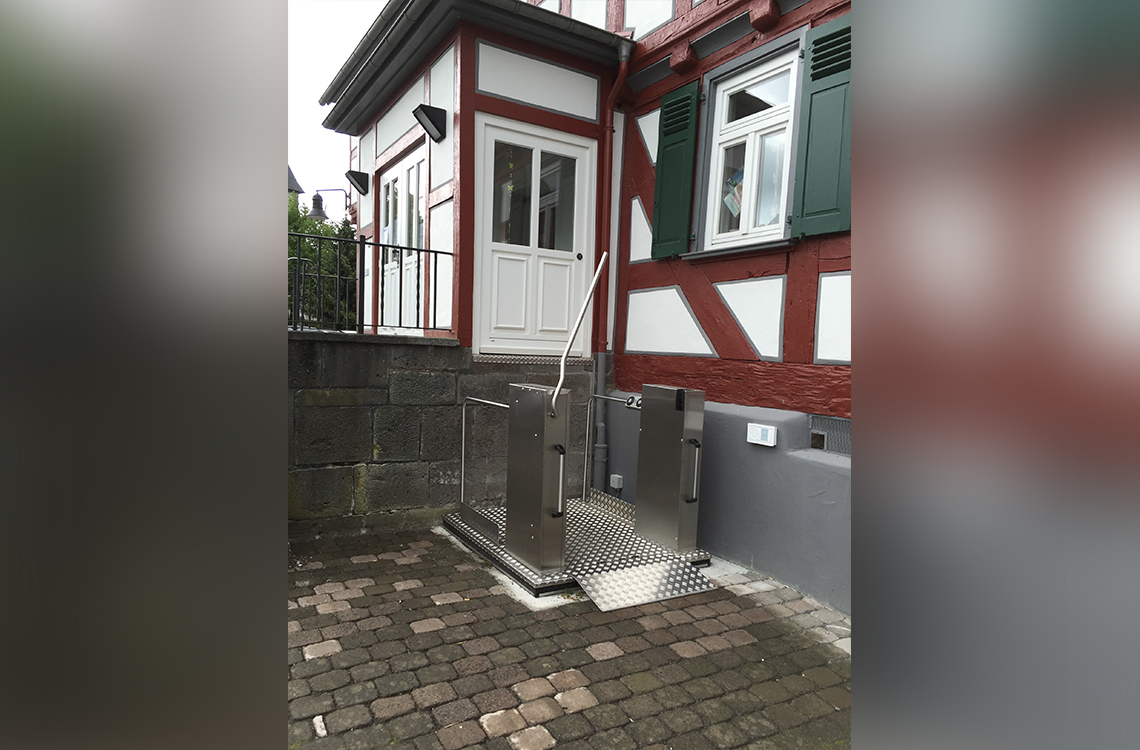

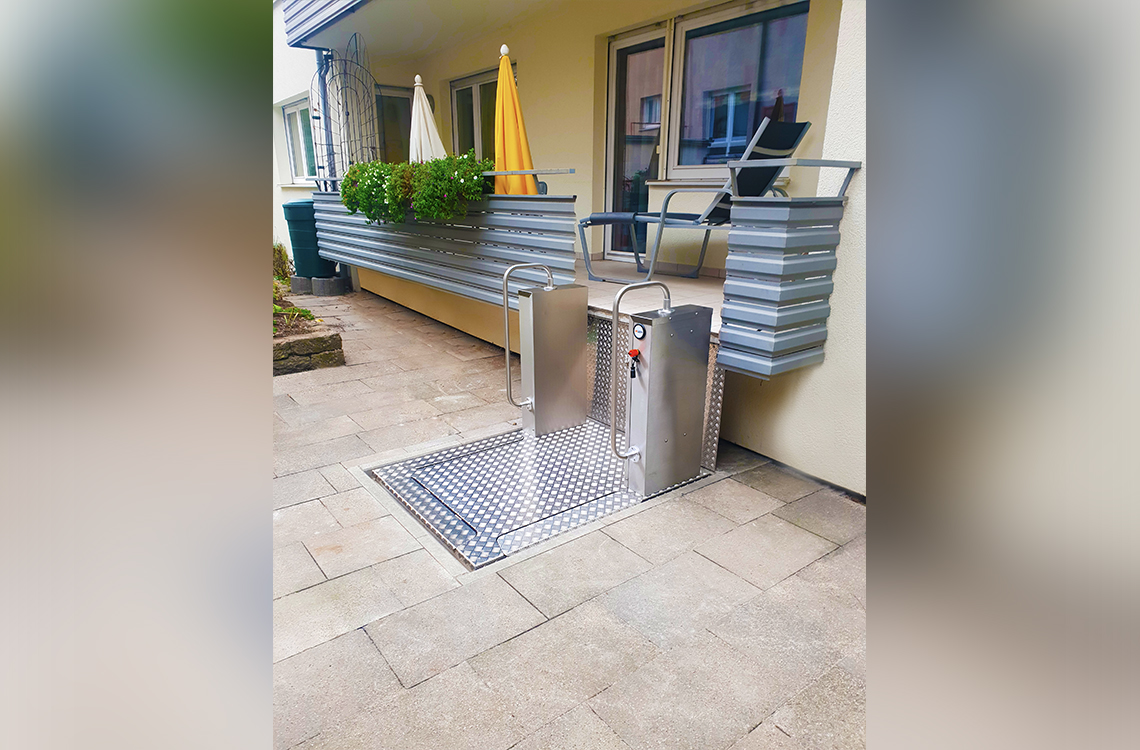

GROUND LEVEL INSTALLATION
If the building site allows it, our lifts can also be installed ground level. For the MB1100, a pit of 60 mm is enough, the MB1400 and MB1700 need 90mm pit depth.
